UDOR Gas Soft Wash Machine 11.0 GPM

300 PSI 11.0 GPM Gas Direct Drive Commercial Mobile Soft Wash System with Electric Start

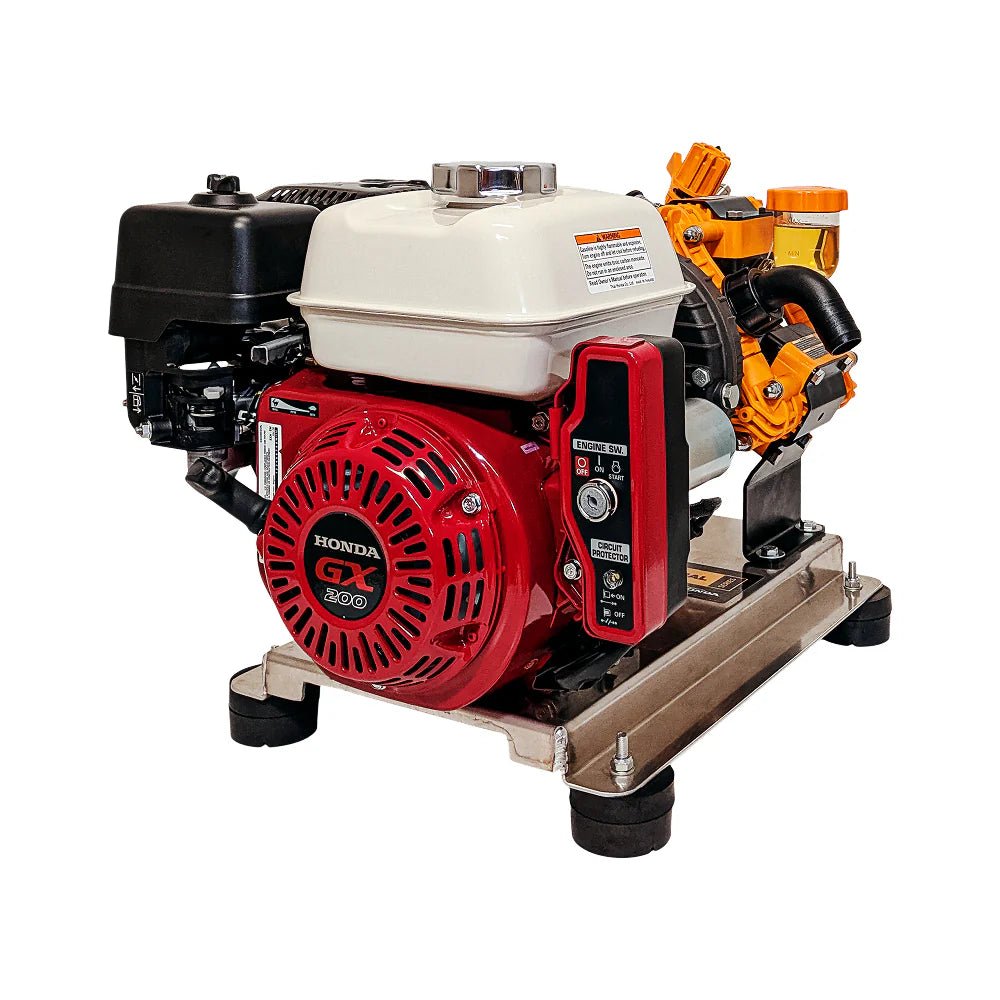

The BE Power Equipment SW1165HEZ is a commercial-grade mobile soft wash system delivering 300 PSI at 11.0 GPM, designed for professional contractors who need low-pressure, high-volume cleaning for surfaces that cannot tolerate the force of a conventional pressure washer. Soft washing uses chemical solution, not water pressure, as the primary cleaning agent. The high-volume flow carries detergent to the surface and rinses it thoroughly, while the low pressure protects roofing materials, wood structures, painted siding, stucco, and other delicate substrates from damage.

Powered by a Honda GX200 196cc engine with recoil and electric start and built around a CP Z42PPGR diaphragm pump rated for professional soft wash applications, the SW1165HEZ is a gas direct drive platform with a pump operating speed of 550 RPM. Built on an aluminum mobile cart frame with easy bolt-down installation for truck or trailer mounting, the SW1165HEZ is a complete commercial soft wash platform ready for daily professional use.

What Is Soft Washing?

Soft washing is a low-pressure cleaning method that uses specific detergents and high water volume to remove biological contaminants such as algae, mold, mildew, lichen, and organic staining from building surfaces. Unlike pressure washing, which relies on water force to remove dirt, soft washing relies on the chemical solution to break down and kill contaminants at the source, with the water volume delivering and rinsing the solution.

Soft washing is the recommended method for:

• Asphalt shingle and tile roofing
• Wood siding, decks, and fences
• Painted and stucco exterior surfaces
• Cedar and composite cladding
• Screens, gutters, and fascia
• Commercial building exteriors where pressure washing would void warranties or cause damage

Features

Honda GX200 Engine

The SW1165HEZ is powered by the Honda GX200 196cc OHV engine with recoil and electric start, a commercial-grade engine with an excellent power-to-weight ratio built for continuous all-day use. Key engine features include:

• Recoil and electric start for reliable, convenient starting
• Fuel-efficient OHV design for extended run times
• Automatic low-oil shutdown to protect the engine
• 3.1 L / 0.8 GAL fuel tank

The Honda GX200 engine is covered under Honda's separate engine warranty program.

CP Z42PPGR Diaphragm Pump

The heart of the soft wash system is the CP Z42PPGR diaphragm pump, designed for commercial soft wash performance where high water volume and low operating pressure are required. The pump runs at a 550 RPM operating speed, which helps reduce pump wear, improve durability, and maintain consistent soft wash performance throughout extended commercial cleaning sessions. Key pump features include:

• High-volume flow at 11.0 GPM for efficient surface coverage and rinsing
• Low operating pressure at 300 PSI: safe for delicate exterior surfaces
• Diaphragm design built for professional soft wash applications
• Maximum operating temperature of 140°F / 60°C
• 1" inlet and 3/4" outlet for high-flow system compatibility
• 1/2" bypass port

Single-Piece Manifold

The single-piece manifold design reduces the number of potential leak points compared to multi-piece manifold configurations, simplifying service and minimizing downtime in the field.

Bolt-On Regulator

The bolt-on regulator provides secure, leak-free pressure adjustment. The bolt-on mounting prevents the regulator from backing out or leaking when the pressure knob is adjusted during operation, a common failure point on soft wash systems with threaded regulators.

Aluminum Mobile Cart Frame with Truck Mount Capability

The SW1165HEZ is mounted on an aluminum mobile cart frame with stabilizing feet for ground-level use and easy bolt-down installation for mounting to a truck bed, trailer, or service vehicle. The aluminum construction keeps the unit lightweight relative to its pump capacity, and the bolt-down mounting pattern accommodates a wide range of vehicle configurations. The SW1165HEZ is Truck Mount Ready (TMR).

Warranty

The SW1165HEZ is backed by a multi-component warranty from BE Power Equipment:

• Engine: 3-year limited warranty. The Honda GX200 is covered separately under Honda's manufacturer engine warranty program.
• Pump: 5-year limited warranty

Each unit is functionally tested at the factory before shipping. The actual product may vary slightly from the images shown on the website.

Product Specifications

• Pressure: 300 PSI
• Flow Rate: 11.0 GPM
• Engine: Honda GX200 196cc OHV
• Start Type: Recoil and Electric Start
• Engine Fuel Tank: 3.1 L / 0.8 GAL
• Engine Oil Type: 10W-30
• Drive Type: Gas Direct Drive
• Pump: CP Z42PPGR
• Pump Type: Diaphragm
• Pump Oil Type: 30W Non-Detergent
• Pump RPM: 550
• Regulator: Bolt-On
• Inlet Size: 1"
• Outlet Size: 3/4"
• Bypass: 1/2"
• Max Operating Temperature: 140°F / 60°C
• Frame: Aluminum Mobile Cart with Stabilizing Feet, Easy Bolt-Down Installation
• Truck Mount Ready: Yes
• Unit Weight: 76 lbs / 34.5 kg
• Unit Dimensions: 26.0" x 17.0" x 18.0"
• Series: Commercial
• Warranty: Engine 3 Yrs Honda / Pump 5 Yrs

Package Information

• Box Weight: 90 lbs / 40.8 kg
• Box Dimensions L x W x H: 32" x 23" x 22"

Included in the Box

• Engine Oil, Funnel, and Spark Plug Wrench
