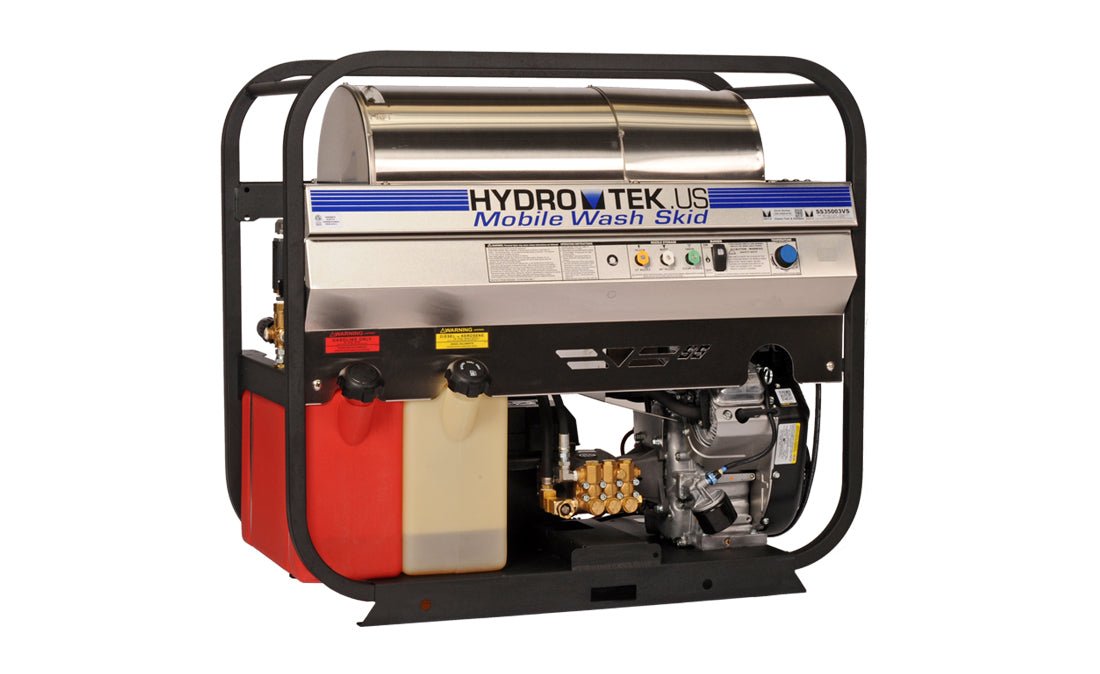

SS Series Mobile Wash Skid – 5.5GPM Steam / Hot / Cold Water Pressure Washer

The SS Series Mobile Wash Skid is a self-contained steam, hot, and cold water pressure washer engineered for heavy-duty, mobile cleaning applications. Powered by a gas engine with a diesel-fired 12V burner, this system delivers continuous hot water without the need for external electrical power.

Using the engine’s 12-volt charging system to power the diesel burner, the SS Series provides reliable, high-temperature cleaning in a compact, easy-to-maintain design. Its slim footprint allows it to pass through standard commercial doorways, while multiple mounting options make it one of the most versatile mobile wash skids available.

Simply turn the key and start cleaning with professional-grade pressure and heat—anywhere the job takes you.

Ideal for property management companies, farmers, mechanics, fleet operators, construction crews, and industrial users who need a powerful, mobile solution for removing dirt, grease, oil, and grime.

Steam / Hot / Cold Water – Self Contained Power

• Diesel heated, gas engine powered
• 12V diesel burner system (no outside electrical power required)
• Continuous hot water output for demanding cleaning jobs
• Adjustable outlet temperature up to 250°F

Key Features & Benefits

• Rugged Pro-Tect-It™ Frame
  Heavy-gauge steel frame surrounds and protects vital pressure washer components with a durable powder-coat finish.
• Stainless Steel Panels
  Provide lifetime corrosion resistance and protect your investment in harsh environments.
• EZ Align™ Belt Tensioning System
  Hydro Tek’s single-bolt belt adjustment system with an integrated self-aligning mono-rail pump mount for fast, easy maintenance.
• Total Relief Unloader
  Enhances operator control and safety while improving reliability by eliminating trapped system pressure.
• Versatile Mounting Options
  Can be mounted on a trailer, truck, wheel kit, or used as a stationary skid.
• Industrial Performance
  Delivers the pressure and flow needed for serious commercial and industrial cleaning—without sacrificing portability.

Specifications

Pressure: 3500 PSI
Flow Rate: 5.5 GPM

Outlet Temperature: Adjustable up to 250°F (140°F rise)

Engine / Power:

• 688cc Honda gas engine
• Electric key start

Engine Fuel / Capacity:

• Unleaded gasoline
• 8-gallon fuel tank

Controls:

• Adjustable thermostat
• Lighted control switch

Pump: General Pump

Drive System:

• V-belt drive with EZ Align™ pump rail
• Stainless steel belt guard

Pressure Control & Safety:

• Industrial unloader valve
• Pressure relief valve
• Safety burst disc
• Industrial fittings

Water Supply:

• Pressure feed from garden hose
• Convenient frame-mounted inlet
• Float tank available (optional)

Pressure Hose:

• 3/8" x 50'
• Rated at 4000 PSI

Gun / Wand:

• 48" molded insulated wand
• Multi-nozzle holder
• Quick coupler

Soap Injection: Optional

Nozzles Included:

• Size 5.5 (15°, 40°)
• Size 4.5 (steam)

Burner Coil:

• SpiraLast™ spiral heating coil
• Robotically fused ½" Schedule 80 steel pipe
• Cold-rolled 4-spiral design
• Ceramic insulation

Burner System:

• Oil-fired, 12V
• 20-amp fuse protected
• Automatic ignition
• Inline fuel filter

Burner Fuel / Capacity:

• Diesel fuel, kerosene, or fuel oil
• 8-gallon capacity
• 546,000 BTU input

Construction:

• Powder-coated Pro-Tect-It™ frame
• Stainless steel panels
• Stainless coil wrap
• Double-wall coil end caps

Wheels: Optional wheel kit available

Weight: 460 lbs

Dimensions:

• 47.5" L x 27.5" W x 40.25" H

Shipping Notice:
This item may ship via freight and does not qualify for free shipping.

For a fast and accurate shipping quote, contact us at 503-405-7185 or orders@expertpowerwash.com. Please include your delivery address and note whether it’s residential (lift gate needed) or commercial/industrial (dock or forklift available).

Please note: Due to CARB regulations, this product is not eligible for shipment to the State of California. Thank you for your understanding.
