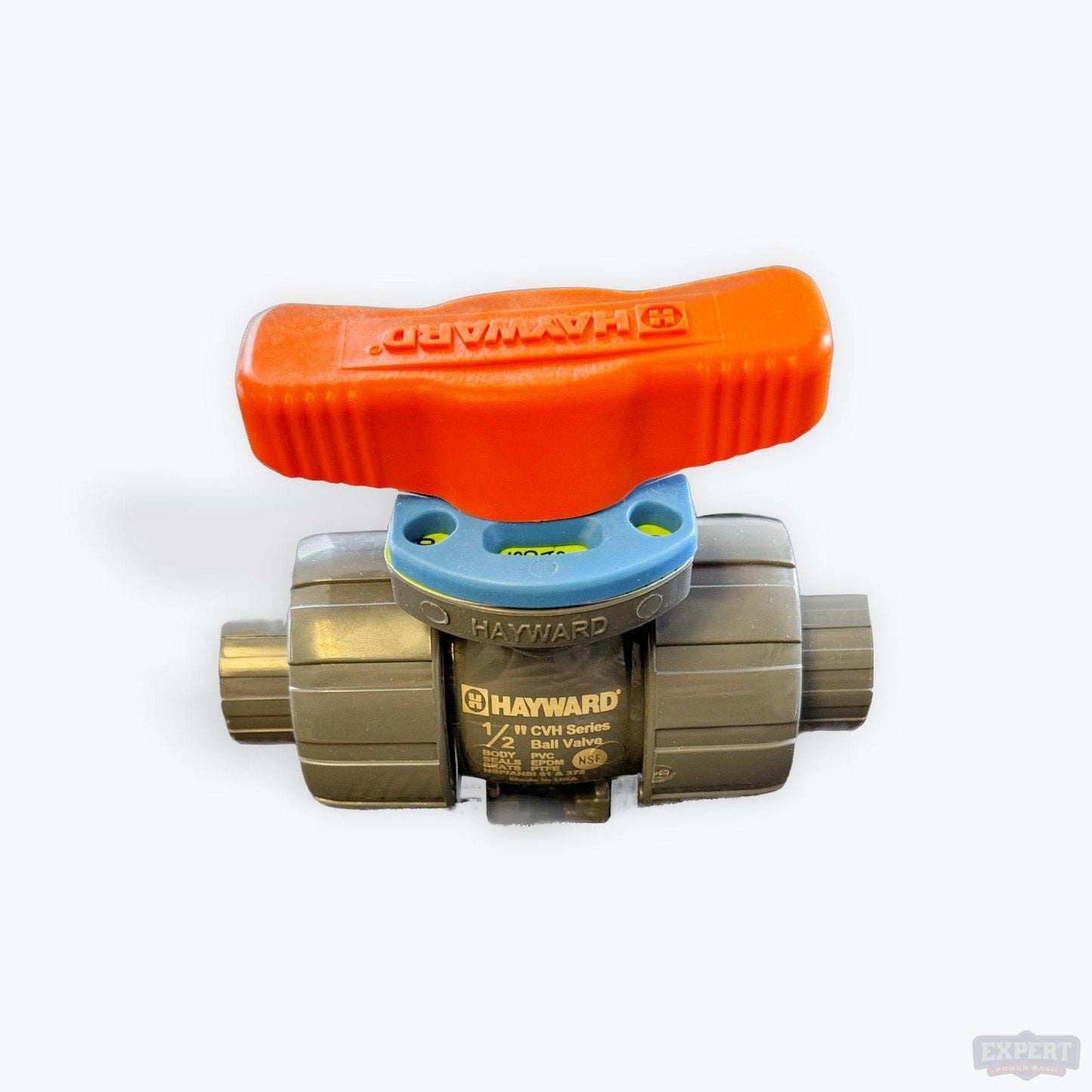

Hayward TBH Series True Union Ball Valves
Hayward TBH Series True Union Ball Valves
Hayward TBH Series True Union Ball Valves
The TBH Series features a low maintenance design with its new patent pending System2™ Sealing Technology for sizes up to 2”/DN50. Sizes 2-1/2” through 6” feature have energized PTFE seats with backing O-ring as standard. All seats are reversible to allow easy field rebuild. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes. Available in sizes 1/4˝ through 6” / DN15 – DN150 in PVC and CPVC materials. The TBH Series are fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock up to 2”/DN50. Sizes 2-1/2”/DN65 – 4”/DN100 sizes are pressure rated for 235psi at 70°F non-shock. Lastly, the TBH is available with IPS or DIN/EN and JIS socket, threaded and flanged end connections for global use. “Patented” & Other Patents Pending” Pat. No.: 11,131,404, 11,649,899.
Key Features and Benefits:
- Full 250 psi / PN16 Rating up to 2”/DN50 and 235psi/PN16, Non-Shock at 70°F / 23°C.
- Integral ISO 5211 Mounting Pad for Easy Actuation
- Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
- System2™ Sealing Technology Seat Carrier Design for sizes up to 2”/DN50– Patent Pending
- Permanent Laser Markings, Eliminates Labels
- System friendly "Molded-In" Footpad for Skid or Panel Mount
- UV Resistant Sure Grip Ergonomic Handle
- FPM or EPDM Seals
- Double O-Ring Stem Seals
- Reversible PTFE Seats - Standard
- Easy Replacement for Existing Hayward TB Series
Product Options:
- Pneumatic or Electric Actuators
- Stem Extensions
- Manual Limit Switch
- Coupling for Actuator
Material Classes:
- PVC per ASTM D1784 Cell Class 12454
- CPVC per ASTM D1784 Cell Class 23447
- GFPP per ASTM D4101 Cell Class 85580 (Handle & Lock Plate)
