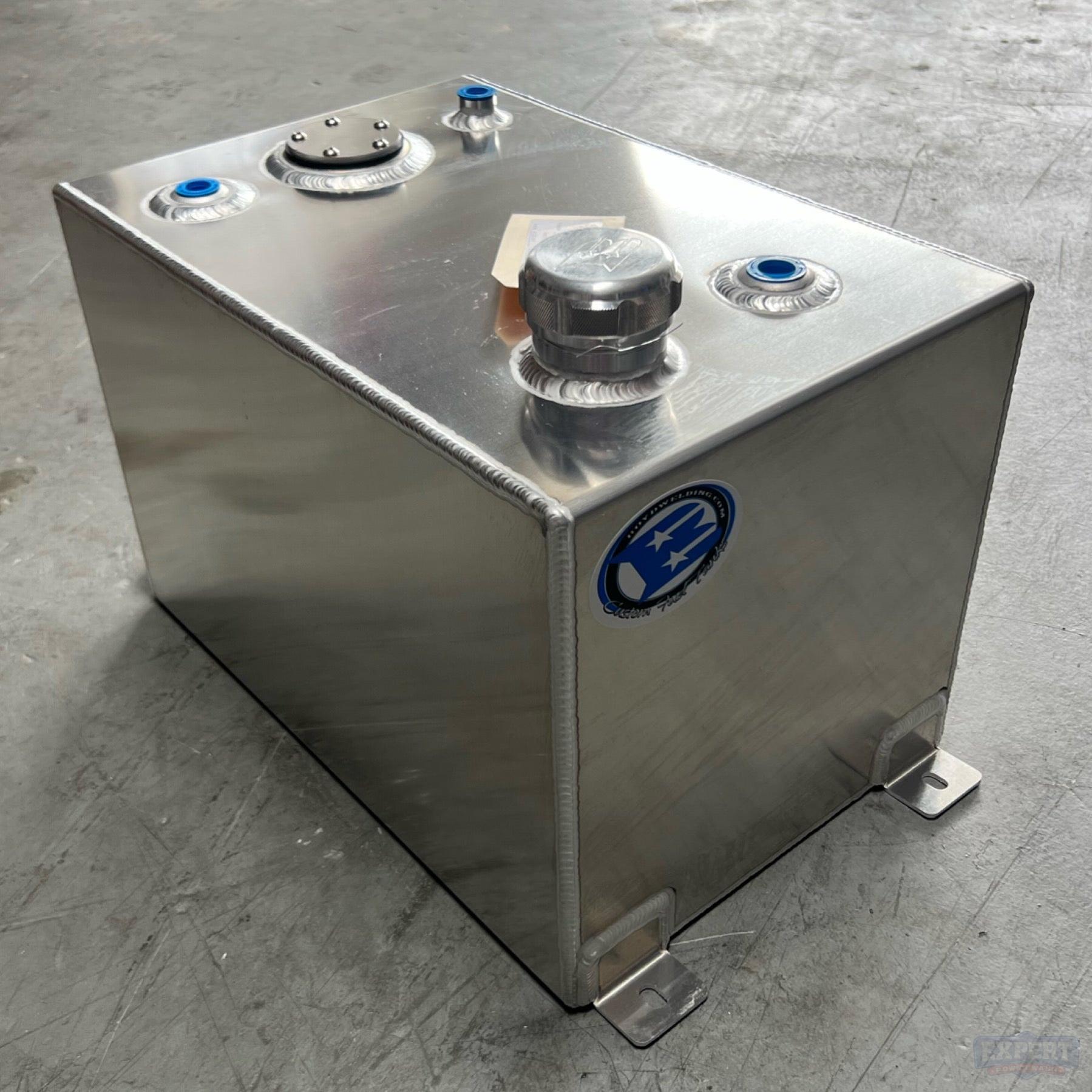

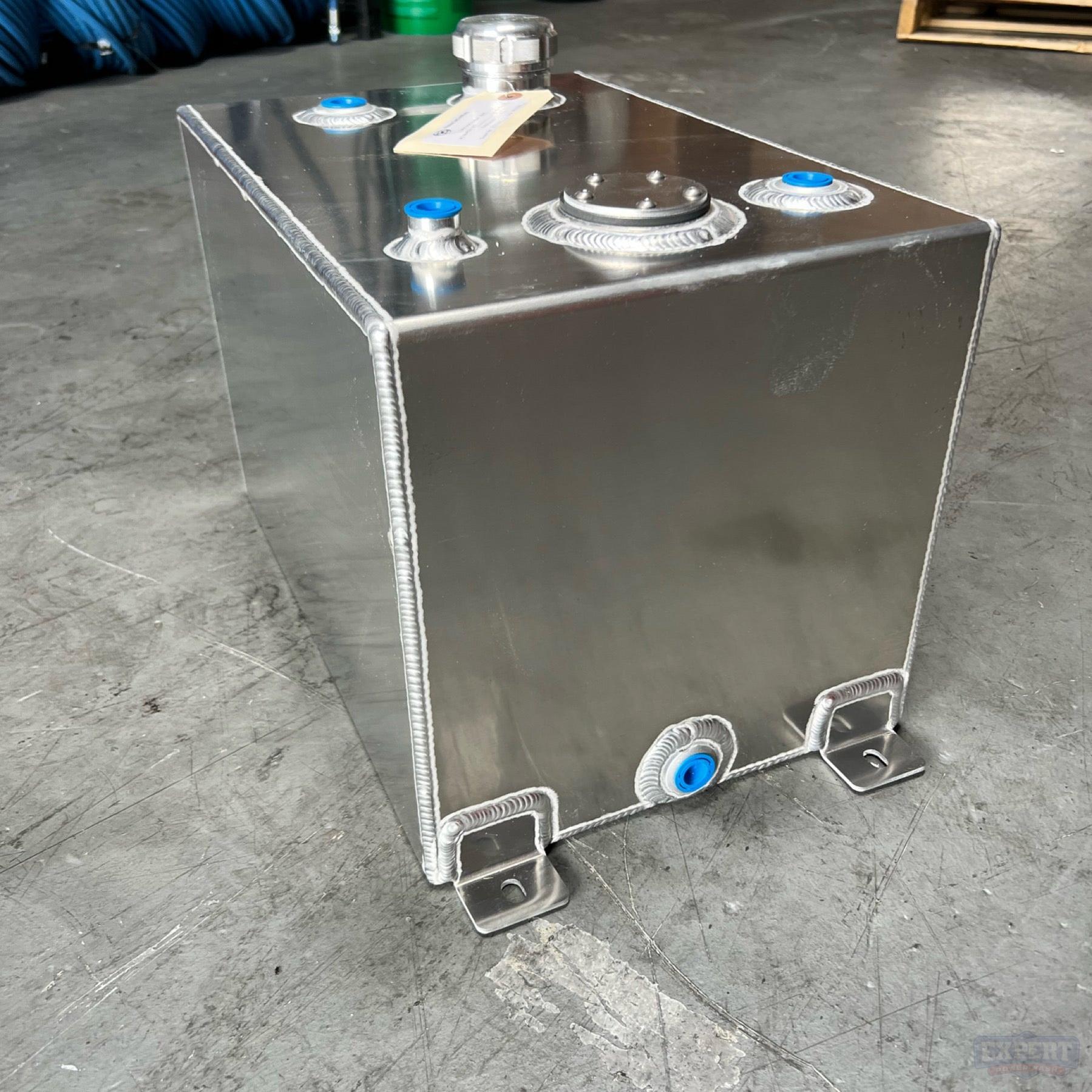

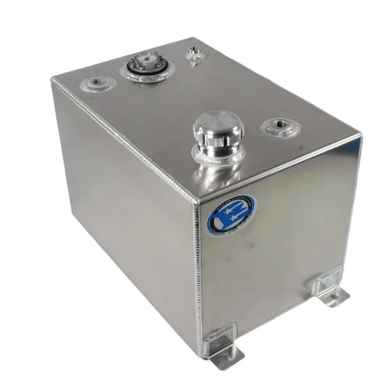

11 Gallon Aluminum Gas Tank

Constructed from 1/8" thick 5052 mill aluminum, this 11-gallon tank measures 18" long, 12" wide, and 12" high, with a 21" x 12" footprint and overall height of 14" including the fill cap. It includes one 3/8" NPT pickup tube standard, with the option to add more for tailored fuel delivery. Venting is provided via a 1/2" NPT port, and 3/8" NPT fittings are incorporated for draw, return, and drain functions. A sending unit flange is included, and four mounting tabs (1.5" x 2" long) ensure secure installation. Threaded fittings, plugs, and hardware are required separately to complete the setup.

Comes With:

• Boyd 2" NPSM Loose CNC Machined Aluminum Cap
• Vent: 1/2" NPT
• Draw: 3/8" NPT Pickup Tube
• Return: 3/8" NPT
• Drain:  3/8" NPT
• Sending Unit Flange: Yes
• Mounting Tabs: (4) 1.5 x 2" Long

Specifications:

• Tank Dimensions: 18"L x 12"W x 12"H
• Tank Footprint: 21" x 12"
• Tank Overall Height W/CAP: 14"
• Tank Thickness:  1/8"
• Material Grade: 5052 Mill Aluminum
• Approximate Weight Empty: 17lbs
• Tank Baffles: No
