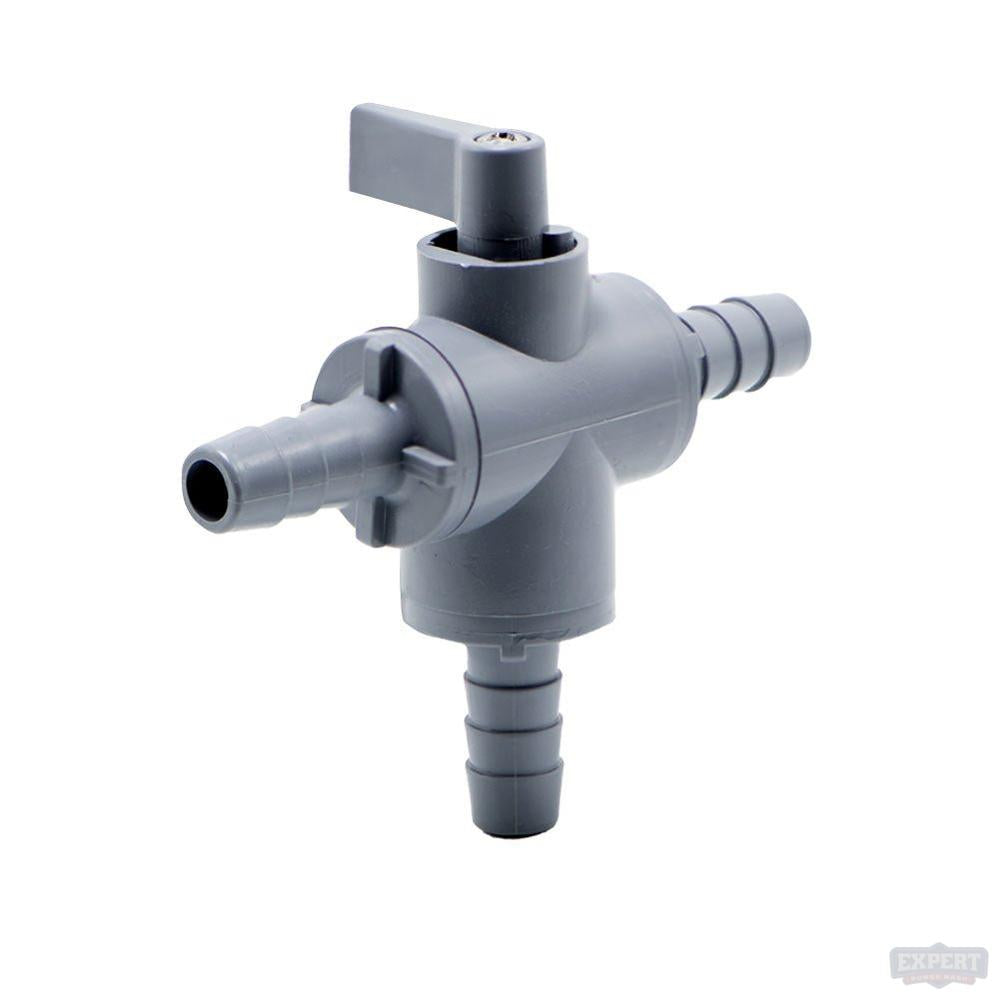

1/4 3 Way Valve Downstream Rinse

The 326 Series three-way ball valve design promotes multiple configurations to fit the exact end use application. The bottom port is common and the 326 Series valve can be used as a diverter or selecting valve. The handle has 180° rotation and lies over the open port. When the handle is rotated 90° from either port, flow is shut off to both ports. PVC valve with FKM seals 1/4" Hose Barb x 1/4" Hose Barb x 1/4" Hose Barb Good chemical resistance Flag handle .312" diameter through hole in ball Not for vacuum Maximum pressure: 125 psi Maximum temperature: 140°F Dimensions: 3.17" L x 2.90" Hgt.
