Soft Wash 12 Volt Switch

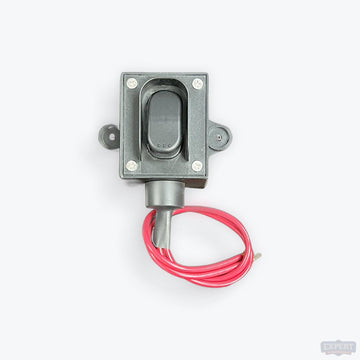

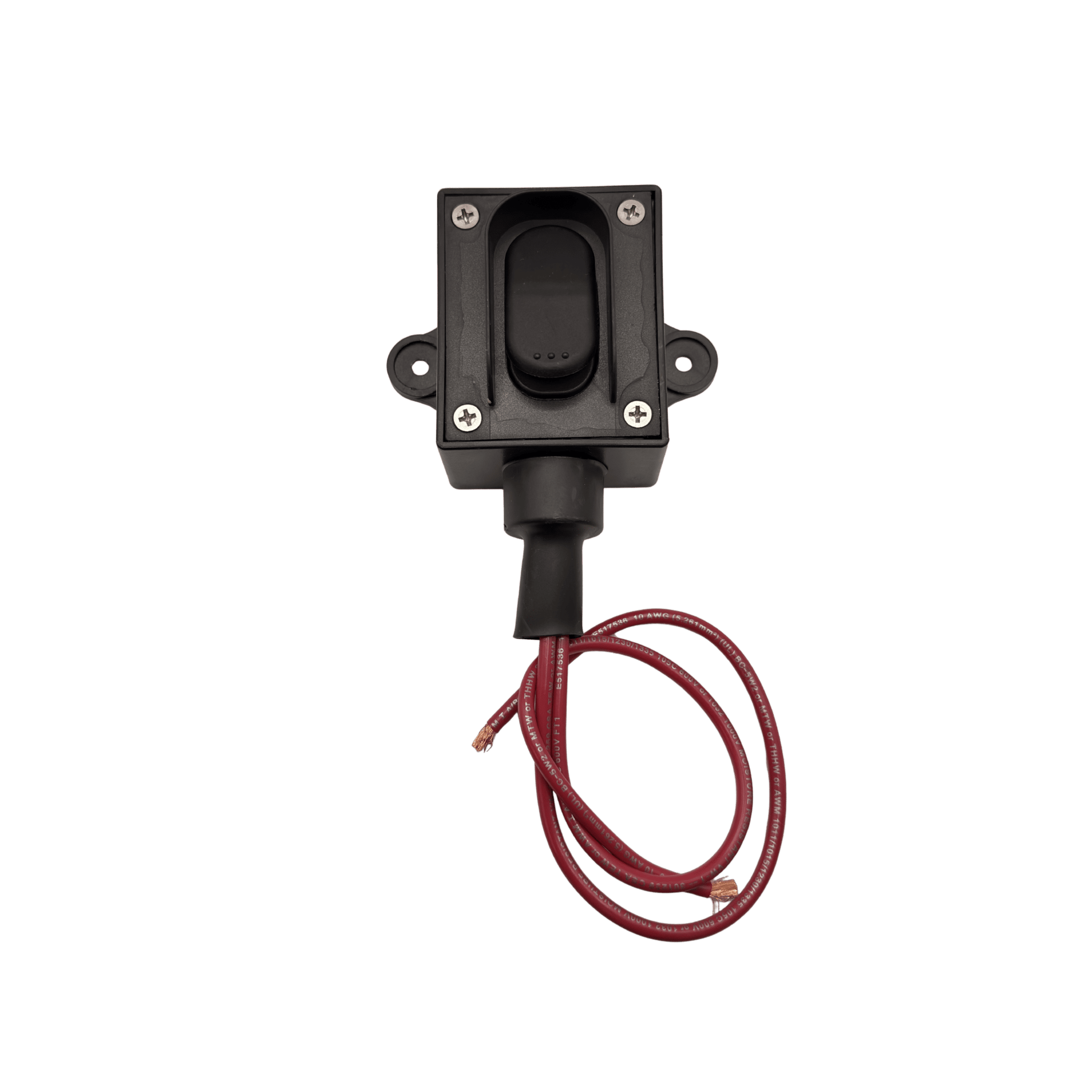

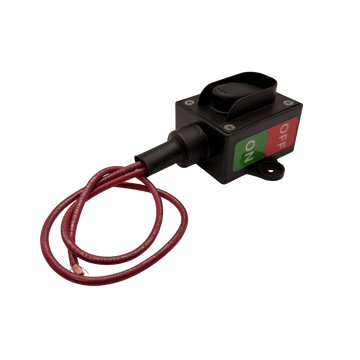

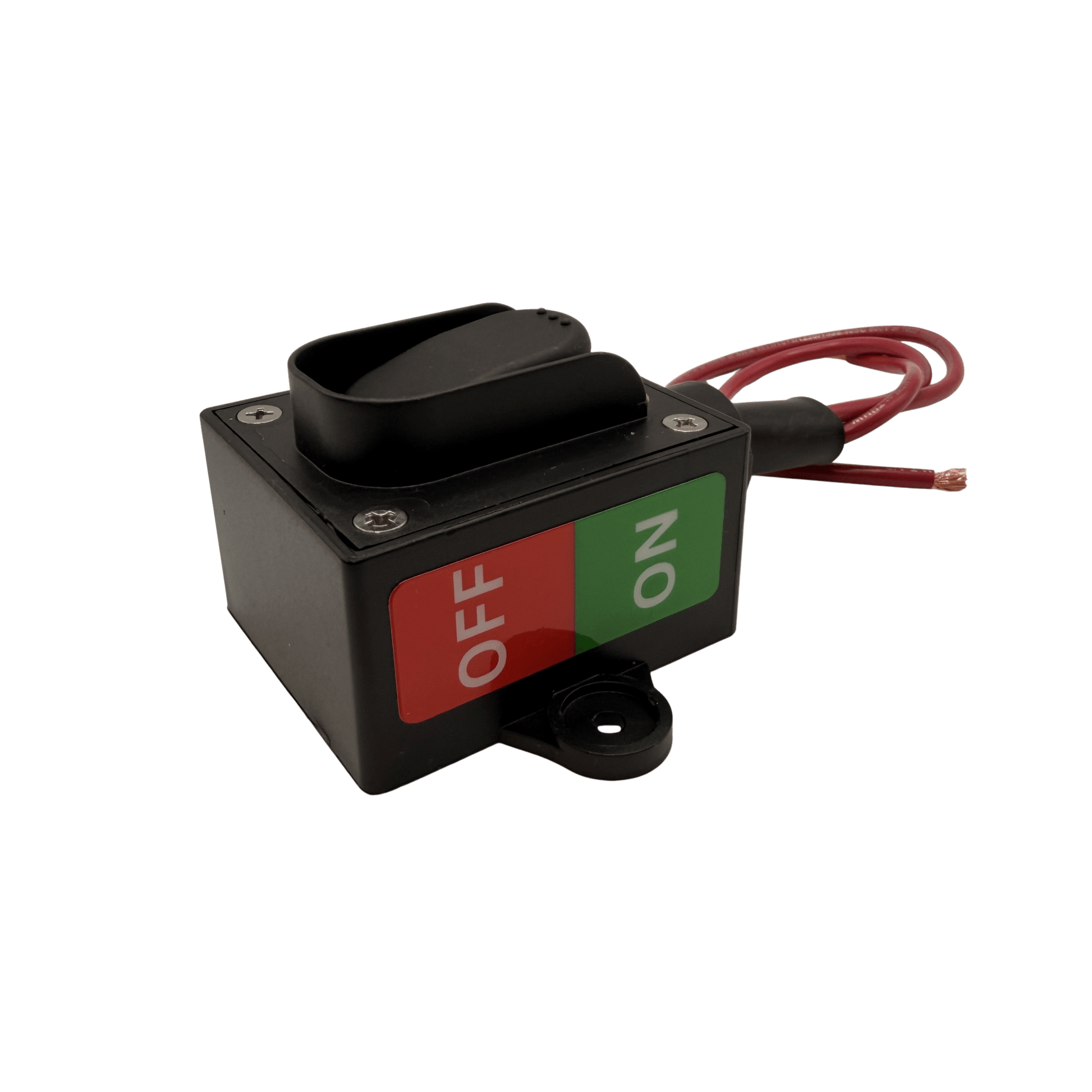

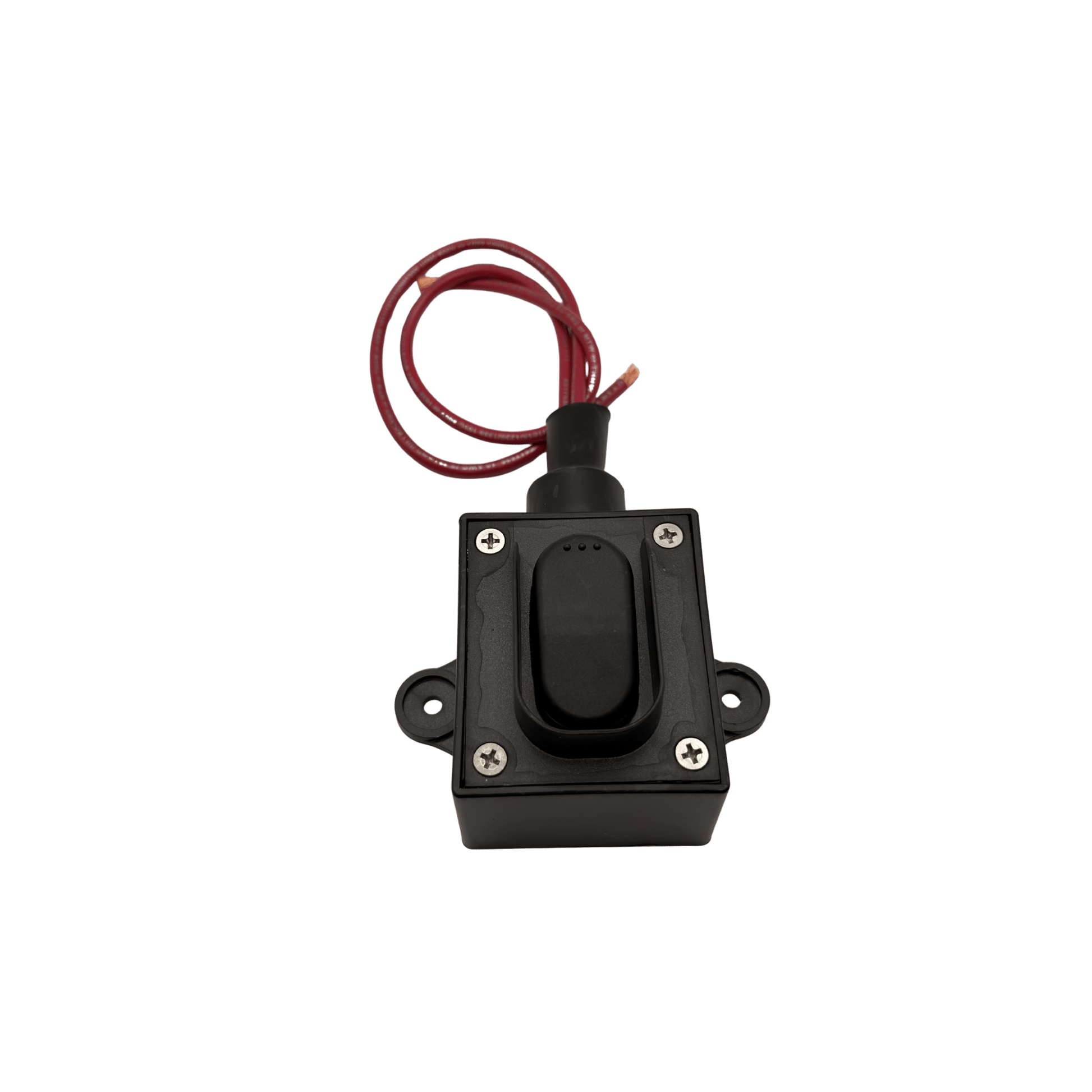

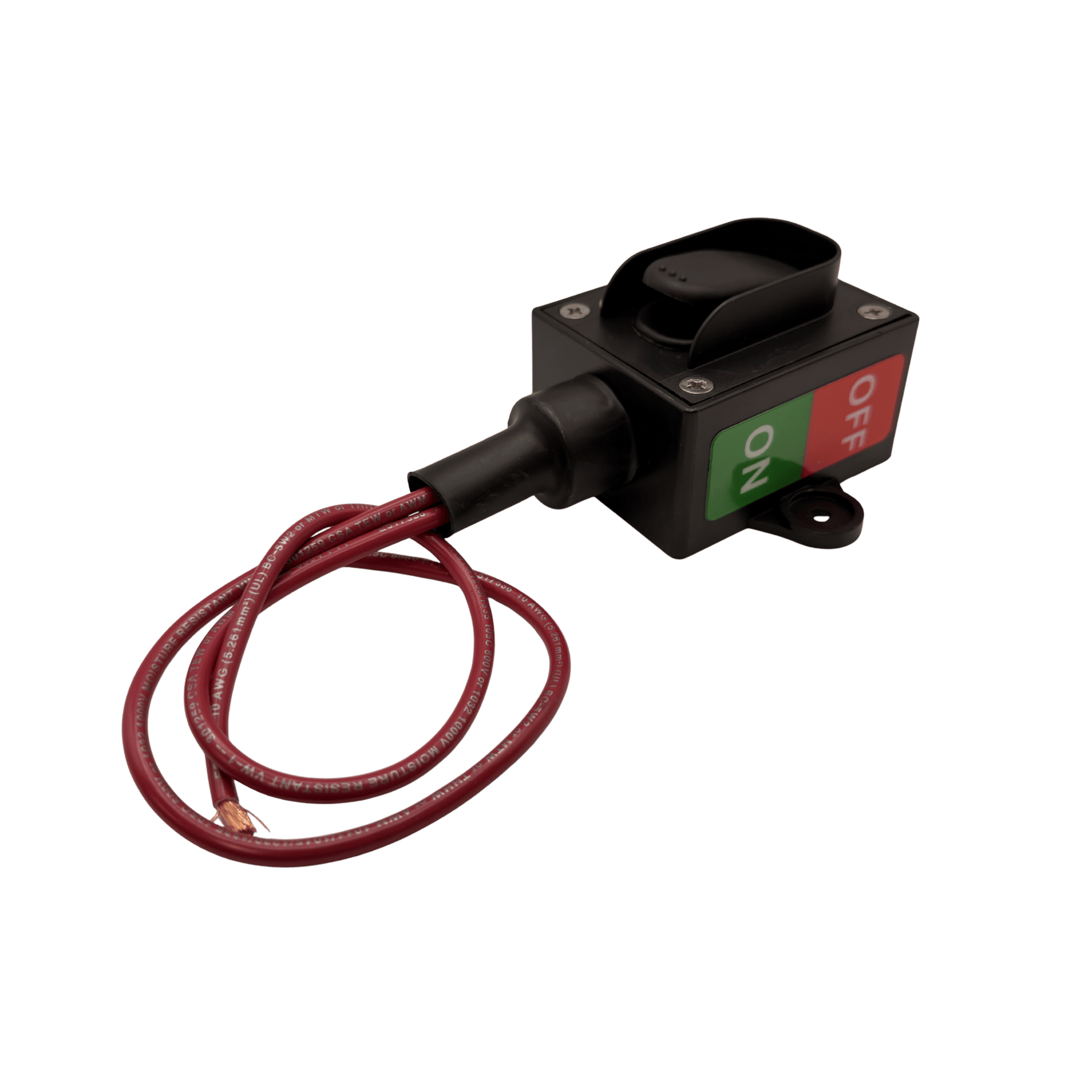

Waterproof Rocker Switch, 30A 2-Position On-Off with Wire Leads

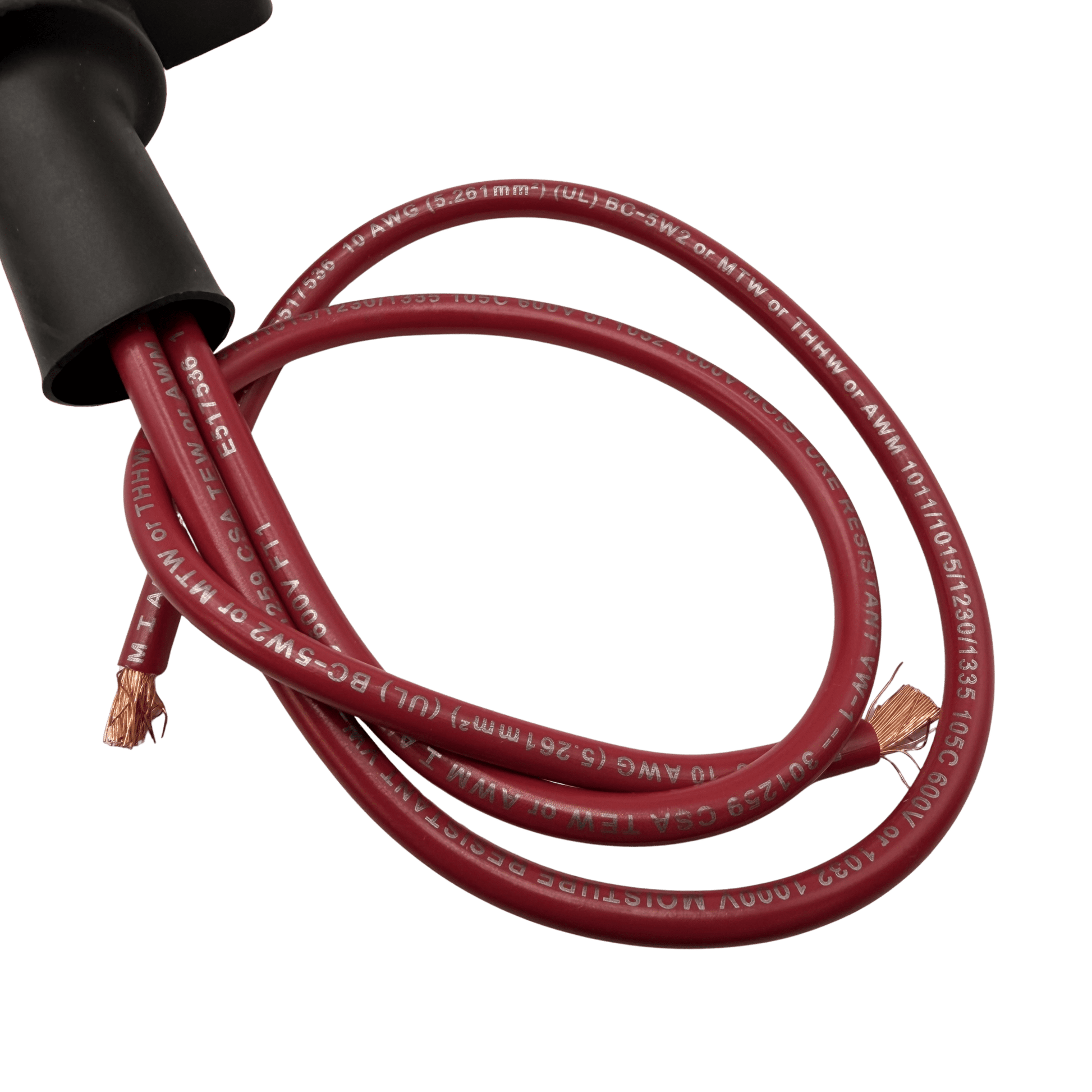

Rugged SPST On-Off power rocker switch is environmentally sealed. This is a maintained switch meaning it stays locked in the selected position. The actuator is sealed by means of gaskets and o-rings. The switch body and connections are encapsulated in urethane inside a robust ABS enclosure. The enclosure has a built-in guard that shields the switch button from accidental actuation. There are two mounting tabs which allow the switch to be secured to a convenient mounting surface. The dimensions of the enclosure are 2 ¾” long x 2 3/8” wide x 2” high (including the switch button guard). 10 AWG switch leads are 12” long. The switch is rated at 30A @ 12VDC, 25A @ 125VAC, 15A @ 250VAC.

It is ideal for marine applications, construction equipment, automotive accessories or other applications in harsh environments.

Specifications

• Waterproof to IP-66
• Rated at 30A @ 12VDC, 25A @ 125VAC, 15A @ 250VAC.
• Dimensions: 2 ¾” L x 2 3/8” W x 2” H (including the switch button guard).
